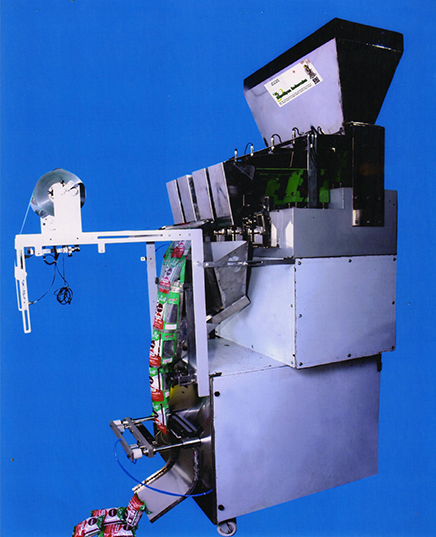

Four Head Weigher Pouch Packing Machine
TECHNICAL DESCRIPTION :
MODEL :FULLY AUTOMATIC PNEUMATIC WITH PHOTO ELECTRIC CONTROL & WEIGHT
FILLING RANGE : 10 GM TO 1 KG
SPEED : 10 TO 15 POUCH PER MINUTE
THIS MACHINE CAN BE USED FOR NAMKEEN , GRANULES , POWDER , ETC.
KEY FEATURES :
THESE MACHINE BUILT WITH FOOD GRADE STAINLESS STEEL TO ENSURE DURABILITY AND REALIBLITY.
FOUR HEAD WEOIGHER POUCH PACKING MACHINE USE ADVANCED WEIGHING TECHNOLOGY TO ENSURE FILLING & MINIMIZE WASTE .
MANY MODEL FEATURES INTIATIVES CONTROL PANEL AND HUMAN MACHINE INTERFACES FOR EASY OPERATION AND MONITORING.
IN HOUSE MANUFACTURING OF WEIGHER .
THIS MACHINE REDUCING OVERFILLING & UNDERFILLING OF PRODUCT.
IT IS AN AUTOMATIC PNEUMATIC FORM, FILL AND SEAL POUCH PACKING MACHINE.
A LAY FLAT ROLL IS MOUNTED ON THE MACHINE .POUCH IS GET FORMED WITH THE HELP OF THE FORMER. THE VERTICAL SEALING TAKES PLACE AT TOP SEALING ROLLERS AND HORIZONTAL SEALING AND CUTTING TAKES PLACE AT BOTTOM SEALING ROLLERS.
THE SEALING TYPE IS HOT BAR SEALING AND IT IS CONTROLLED BY DIGITAL TEMPERATURE CONTROLLER ON THE FRONT PANEL .PANEL OF ADJUSTMENT SYSTEM FOR EXACT WEIGHT REQUIRED .THE PHOTO CONTROL UNIT IS USED TO CUT THE POUCH AT FIX PLACE(PHOTO DOT). BATCH CODING (OPTIONAL) IS DONE ON LINE ON THE MACHINE.
